Highlighted Features:

Ranges from 38KW to 95kw

Power Cons: 17.3KW- Output: 95KW
Advised Pool Volume: 150-300 m3
Cooling Capacity: 37.2 KW
Parameter: T1,50Hz
Operating Air Temperature: -15-43 C
Fan Quantity: 03
Water Flow Volume: 29 m3/hr
Power supply: 380V~415V/3N/50HZ
R410A – EER: 2.1
Water Connection: 110mm
Water Flow Volume: 60.0 m3/h
Net Dimensions: 2180×1070×2060mm
Dual Coil titanium heat exchanger
Scroll Compressor – Copeland USA
Fin heat exchanger
Electric expansion valve
Variable Speed Fan

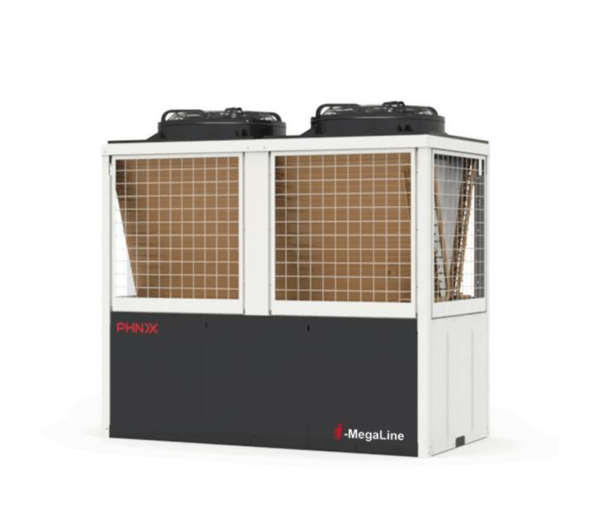

MegaLine V Swimming Pool Heat Pump

Commercial On/Off Swimming Pool Heat Pump

MegaLine V is a series of fixed frequency Commercial Pool Heat Pump. Not just quieter and easier operation beyond your imagination, the MegaLine V series is a cost-effective choice for constant and reliable pool water temperature for heating/cooling on commercial occasions.

Commercial Occasion Application

PHNIX MegaLine V Pool Heat Pumps are widely used in public places all over the world, such as hotels schools, aqua parks, gyms, etc.

Commercial Occasion Application

Centralized Control

MegaLine V Pool Heat Pump comes equipped with centralized control that makes temperature adjustment and failure review much easier and more practical. By incorporating the master-slave control into the design, the master units can work together with higher efficiency without being interfered by any failure of the salve unit during operation.

Centralized Control

High Efficiency

With COP of 5.7 at working condition of 24°C/19°C(DBAft/B), MegaLine V has a high efficiency for both pool cooling and heating.

High Efficiency

Copeland Compressor

Compressor with precise energy stage settings ensures the working unit to achieve the desired energy saving results.

Copeland Compressor

Electric Expansion Valve

The electric expansion valve inside the unit can automatically adjust the refrigerant flow rate, which ensures the unit to operate with high efficiency in all weather conditions.

Electric Expansion Valve

Powered by i-Aquatech Technology

Powered by i-Aquatech Technology stands for the newest optimized technology specific to PHNIX swimming pool heat pump products.

Powered by Powered by i-Aquatech Technology, the heat pump runs at PHNIX unique inverter technology, maintaining the max stability and greatly reducing the energy consumption during running.
