Fiberglass laminated sand filter for top and commercial pools

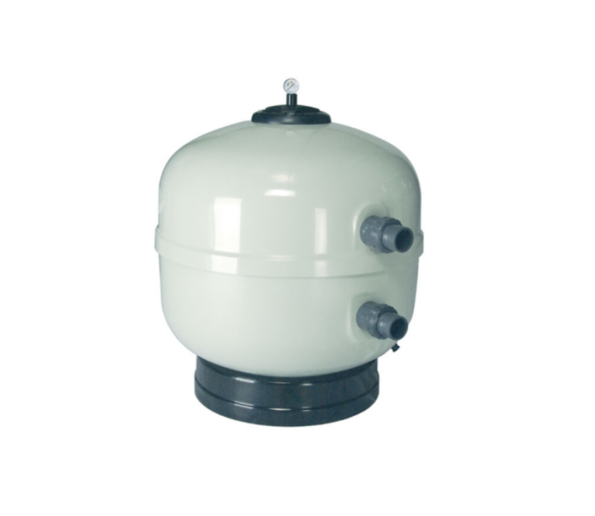

Introducing the Aster Fiberglass Laminated Sand Filter—your premier solution for high-capacity commercial pool filtration in Pakistan. Designed for durability and efficiency, this filter is ideal for large-scale applications, including hotel swimming pools, industrial facilities, and public aquatic centers.

Key Features

• Robust Construction: Crafted from fiberglass and polyester, the Aster filter ensures longevity and resistance to corrosion.

• Efficient Filtration: Equipped with 1″ diameter collectors and a highly resistant PVC and PP plastic diffuser, it delivers superior water clarity.

• User-Friendly Design: Features a screwless cover for quick access, a pressure gauge, and manual air and water purge valves for straightforward maintenance.

• Versatile Multiport Valve: The side-mount 6-way multiport valve offers multiple functions, including filter, backwash, rinse, recirculate, waste, and closed positions, enhancing operational flexibility.

• High Performance: With a maximum flow rate of 50 m³/h/m² and an operating pressure of up to 2.5 kg/cm², it meets the demands of large commercial pools.

Specifications

• Material: Fiberglass and polyester laminate

• Collector Diameter: 1 inch

• Diffuser Material: PVC and PP plastic

• Valve Type: Side-mount 6-way multiport

• Base: Polypropylene

• Cover: Screwless for quick access

• Maximum Flow Rate: 50 m³/h/m²

• Maximum Operating Pressure: 2.5 kg/cm²

• Warranty: 1-year against manufacturing faults

Frequently Asked Questions

How often should the sand in the filter be replaced?

Typically, the sand should be replaced every 3 to 5 years. However, this can vary based on pool usage and water quality. Regular maintenance checks can help determine the optimal replacement schedule.

What is the process for backwashing the filter?

To backwash the filter:

1. Turn off the pump.

2. Move the multiport valve handle to the “Backwash” position.

3. Turn the pump back on and run until the sight glass is clear.

4. Turn off the pump again.

5. Move the valve handle to the “Rinse” position.

6. Turn the pump on for about 10 seconds.

7. Turn off the pump and return the valve handle to the “Filter” position.

8. Turn the pump back on to resume normal operation.

Is the Aster filter suitable for saltwater pools?

Yes, the Aster filter’s corrosion-resistant materials make it suitable for use in saltwater pools.

What maintenance is required for optimal performance?

Regularly monitor the pressure gauge; an increase indicates the need for backwashing. Inspect and clean the diffuser and collectors periodically to ensure efficient operation.

Can the filter handle high bather loads?

Absolutely, the Aster filter is designed to manage high bather loads, making it ideal for commercial applications such as hotel pools and public aquatic centers.

Invest in the Aster Fiberglass Laminated Sand Filter for a reliable, efficient, and durable solution to your commercial pool filtration needs in Pakistan. Contact Islamabad Pools today to learn more or to place an order.
